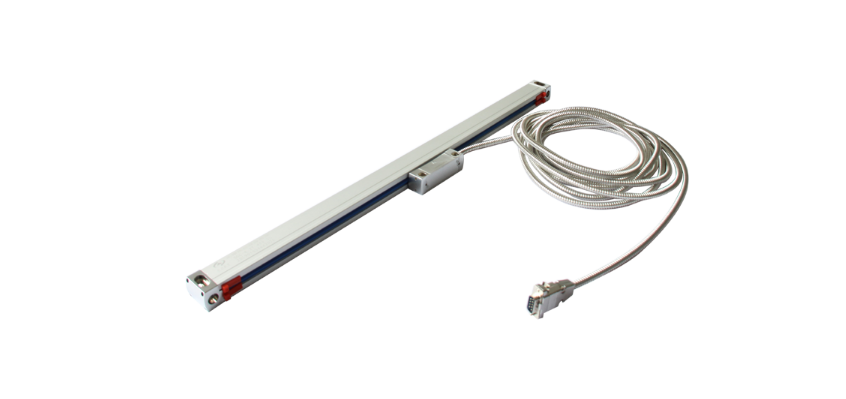

Name：Linear Scales SGC 4.2/ SGC 4N

*  Measuring Lengths: 100mm to 1000mm

*  Grating pitch:0.02mm (50LP/mm),0.04mm (25LP/mm)

*  Resolution: 0.0005mm, 0.001mm, 0.005mm, 0.01mm

*  Accuracy: +-0.003mm, +-0.005mm, 0.01mm, +-0.015mm( 20℃ 1000mm)

*  Reference Mark: 1ref.mark every 50mm or 100mm, Distance-coded

*  Output Signals: TTL, HTL, EIAP422-A, ͠͠ 1Vpp,  ͠͠ 11uApp

*  Max.Traversing Speed: 60m/min, 120m/min

*  Operating Temperaure: 0℃ to 50℃

*  Srorage temperature: -20 ℃ to 70 ℃
